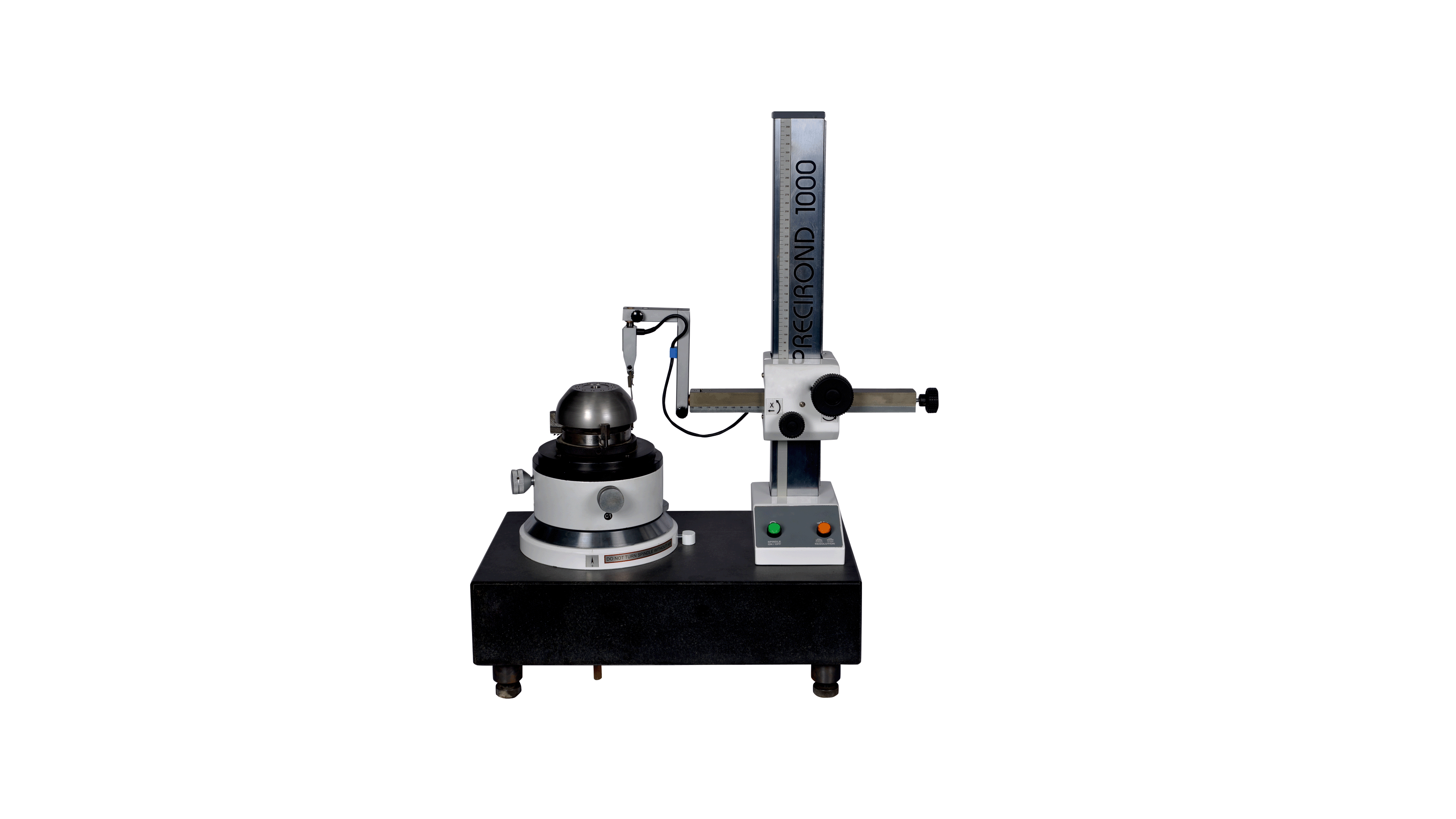

Compact Roundness Machine designed to operate on Shop Floor with granite base and high accuracy air bearing spindle. Complete with powerful data analysis with winround software. This provides enhanced functionality and ease of operation accompanied with software assisted centering & leveling.
Enables effective measurement of Roundness, Concentricity, Eccentricity, Run out, Flatness, Parallelism, Squareness, Co-axility
Manual vertical & horizontal movement under Rack & Pinion mechanism
Test Diameter : 300 mm
Measuring Height : 350 mm
Work Table Diameter : 160 mm
Resolution : ± 0.1 µm maximum resolution & ± 0.01 µm minimum resolution
Rotational Error : 0.05 + 0.0005h micrometer (h in mm)
