Measuring Machine

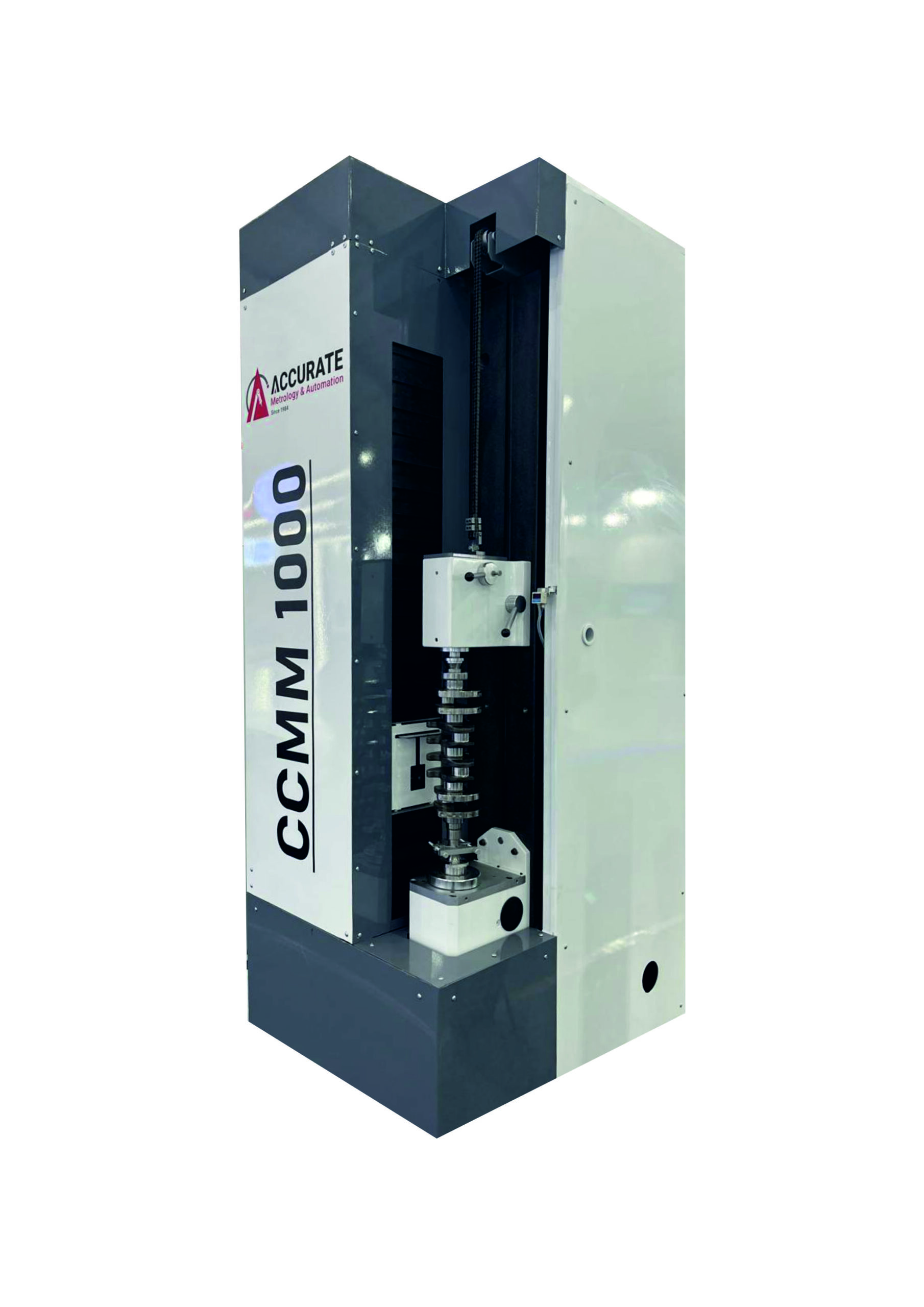

The Accurate CCMM1000
The AMAC Crankshaft Camshaft Measuring Machine  is engineered to provide advanced manufacturers with an accurate and reliable gauge for production floor or metrology laboratory use. It helps organizations improve part quality, and increase manufacturing efficiency at lower cost.
The gauge is available in 700mm, 1000mm & 1500mm part capacities, offering an automated metrology solution for every manufacturing need.
Benefits:-

• Offers fast cycle times and rapid part evaluation
• Reduces labour and material costs with increase in superior gage accuracy and reliability
• Eliminates operator error with one button testing, concise pass/fail inspection reports, and more
• Measures multiple part types and complex geometries
• Provides numerical and graphical representation of complex metrology data
• Enables manufacturers to measure multiple part types using a flexible gage platform

Parameters Supported:-

• Concentricity
• Diameter (LSC, 2-Point Max/Min)
• Runout
• Cylindricity
• Roundness
• Straightness
• Length
• Cam profile measurement over 360°
• Cam Profile Deviation
• Cam Angle
