Gear Measurement

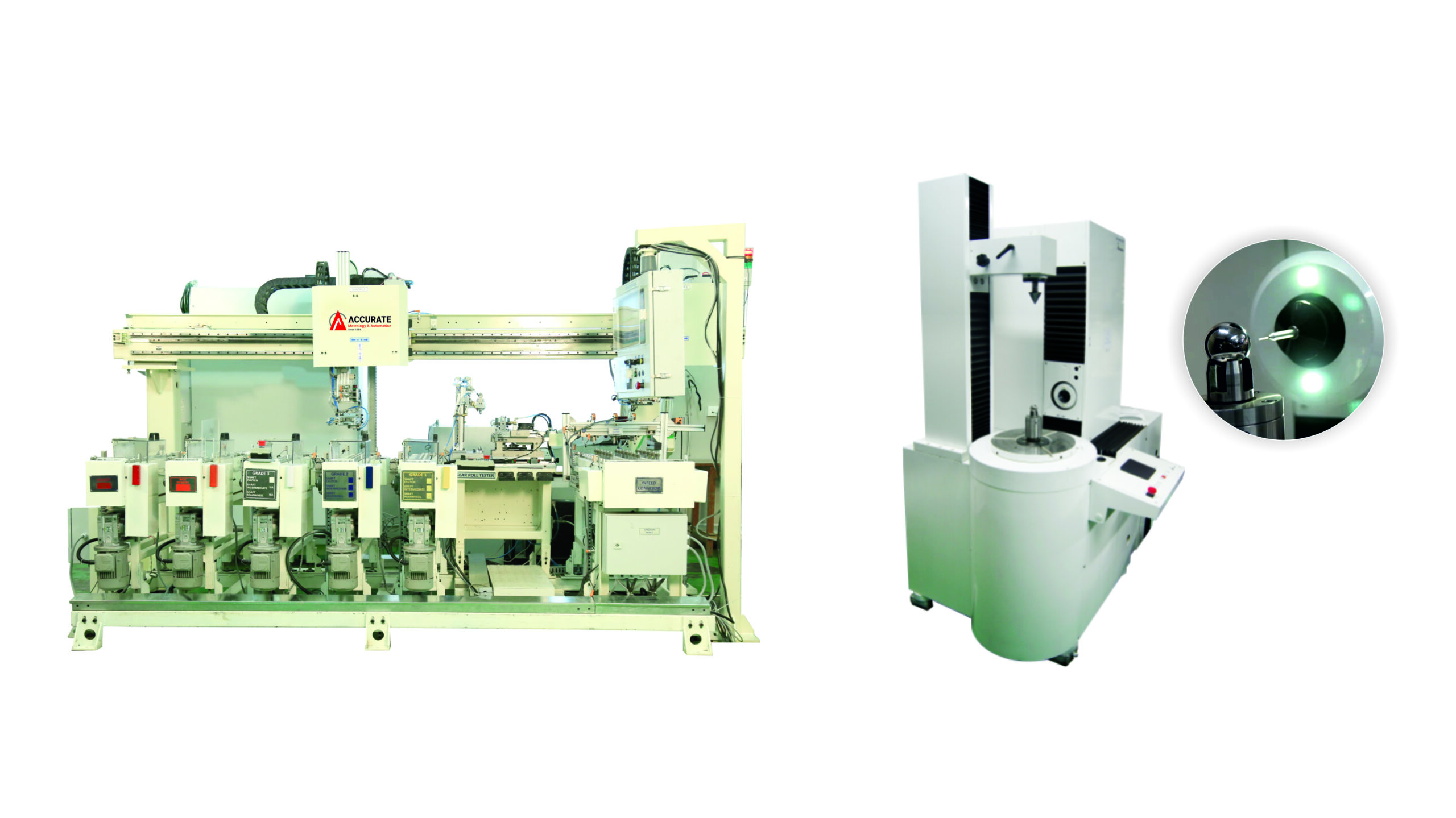

  • Unique design for fast measurement of Spur & Helical gears
  • Automatic Cycle features
  • Manual Loading & Unloading for semi-Automatic GRT
  • Pick & Place by Gantry / Robot for fully Automatic
  • Graphical Presentation of Measured parameters
  • Stacker / Conveyer are used for Input & Output System Component depending on No. of Component
  • Interfacing with Marking System: Laser Marking / Pin Marking / Paint Marking / Pen Marking



PARAMETER: Tooth to Tooth Error; Total Runout Error; Total Composite Error; Over ball Diameter

Up-gradation of old CNC gear tester under taken by Accurate

  • Mechanical restoration and geometrical alignment as required by machine standard.
  • Replacement of old electronics with new drive & controller.
  • 3.New Gear Soft 5.0 window based gear software.
  • Various option are available to suit customer needs like internal / external gear inspection, cutter, gear shifter drums, spline shaft etc.
  • All required accessories and fixtures of gear measuring are manufactured in- house at our end.

Features

  • Low cost up-gradation of old CNC 3 Axis / 4 Axis Gear Tester with indigenous software and electronics.
  • Up-gradation is possible on most of the old CNC gear checking machines like Klingelnberg, Hofler, M & M, Mahr, Osaka, Maag & others.
  • Renishaw scanning probe SP600 – 3D Probe
  • Use of latest drive & controller from Delta tau.
  • Setting of all mechanical parts to achieve required geometrical accuracies up to class 2 of VDI 2612 /13 standards.
