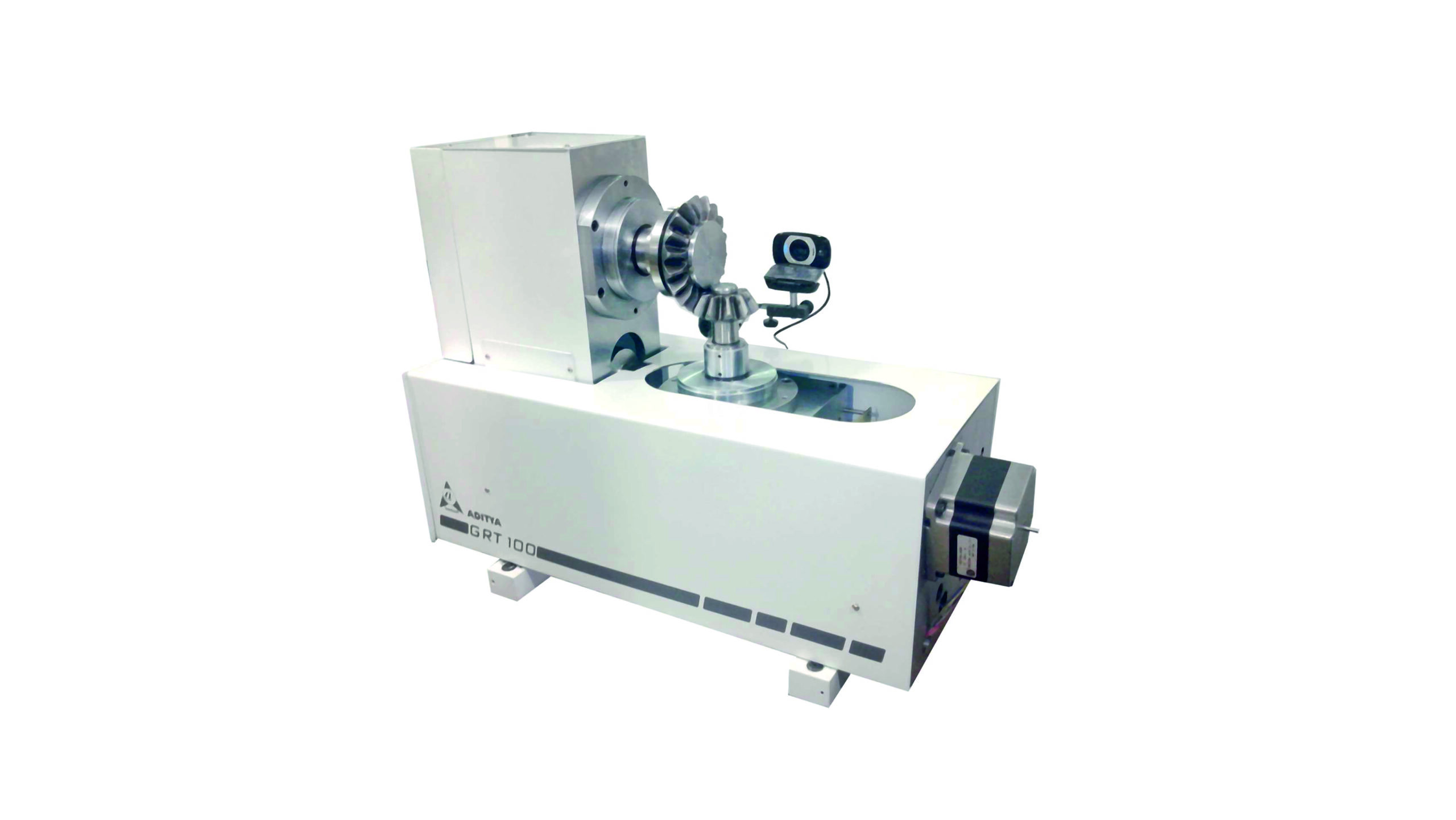

Unique design for fast measurement of straight bevel gear.
Preloading of gears
Rotation for measurement
Evaluation of measurement
Contact Cycle pattern (optional)
Retraction with graphical representation is displayed on the PC
Contact Pattern (Blue Matching Comparing) by Camera images
Evaluation software version 1.0 for Radial composite error, Radial tooth-to-tooth composite error, Working Radial error
